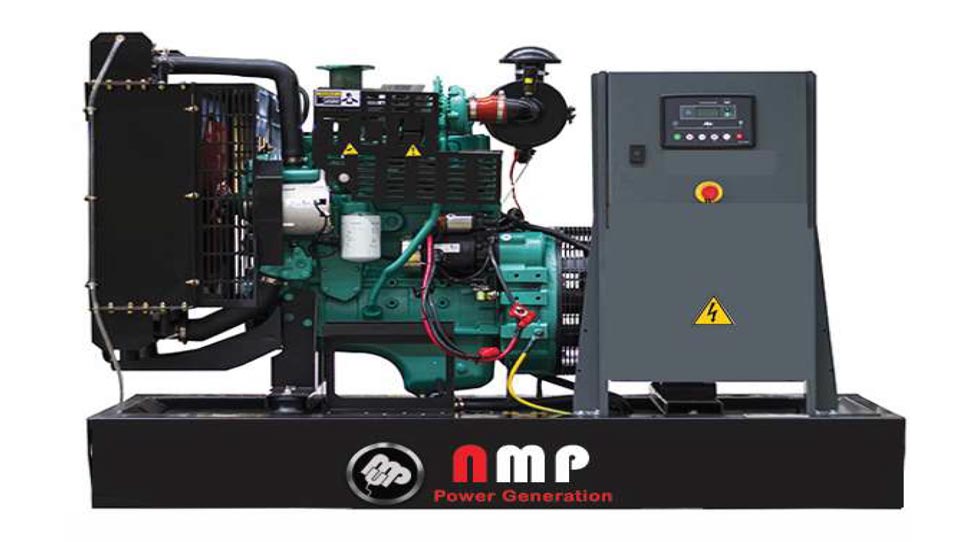

NC-55

M O D E L

NC-55

INDUSTRIAL RANGE

Powered by Cummins



NC-55

دائم / Prime اضطراری / StandbyGenerating Rates
قدرت 50
-----
40
55
-----
44
kW/kVA
Power
جریان7279CurrentAmp
دور موتور1/5001/500R.P.MRated Speed
ولتاژ خروجی400/230400/230VVoltage
ضریب قدرت0/80/8Cos PhiRated at power factor
  • High quality, reliable and complete power unit
  • Compact design
  • Easy start and maintenance possibility
  • Every generating set  is  subject  to  a  comprehensive  test  program  which includes  full  load  testing, checking  and  provision of all control and safety shut down functions testing
  • Fully engineered with a wide range of options and accessories (Canopy, sound proof canopy and on – road trailer)
  • Ambient conditions of reference according to ISO 8528-1:2005

Normative: 1000 mbar, 25ºC, 30% relative humidity.

  • Emergency Standby Power (ESP):

The maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers.

The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP

  • Prime Power (PRP):

The maximum power which a generating set is capable of delivering continuously whilst supplying a variable electrical load when operated for an unlimited number of hours per year under the agreed operating conditions with the maintenance intervals and procedures being carried out as prescribed by the manufacturer.

The permissible average power output (Ppp) over 24 h of operation shall not exceed 70 % of the PRP.

  Engine Specifications
برند موتورCumminsManufacturer
مدل موتور S3.8-G6Model
تعداد سیلندر4No. of Cylinder
آرایش سیلندرInline Type of Cylinder
تعداد سیکل (چرخه احتراق)4No. of Cycle
سیستم هوا دهی Turbo ChargedAspiration Systems
حجم موتور3.80L Total Displacement
قطر سیلندر و کورس پیستون97x128 mmBore & Stroke
نسبت تراکم 17.5:1Compression Ratio
نوع گاورنرMechanicalGovernor Type
ظرفیت کل روغن11.00LOil Capacity
ظرفیت سیتسم خنک کنندگی 15.00LCoolant Capacity
حجم هوای ورودی به موتور جهت احتراق3.60m³/minAir Intake Engine
حجم هوای عبوری از روی رادیاتور82.00m³/minRadiator Cooling Air
حجم هوای خروجی اگزوز موتور5.30m³/minExhaust Gas Flow
دمای هوای خروجی اگزوز موتور546.00 ° CExhaust Gas Temperature
ولتاژ استارت12V / D.CStart Voltage
مصرف سوخت لیتر بر ساعت25% 50% 75% 100%
------ ------ ------ -------
3.97 6.50 9.50 12.80
Fuel Consumption Ltr/h
